Simple Light Box Sign

Width: 8″ (20 cm)
Height: 8″ (20 cm)
Length from wall: 16.5″ (42 cm)

Material: aluminum, PE plastic
Temp/Light: 4000 - 4500K
Voltage: 12 volts

What's included:
1x dimmer

What is the Simple Light Box Sign?

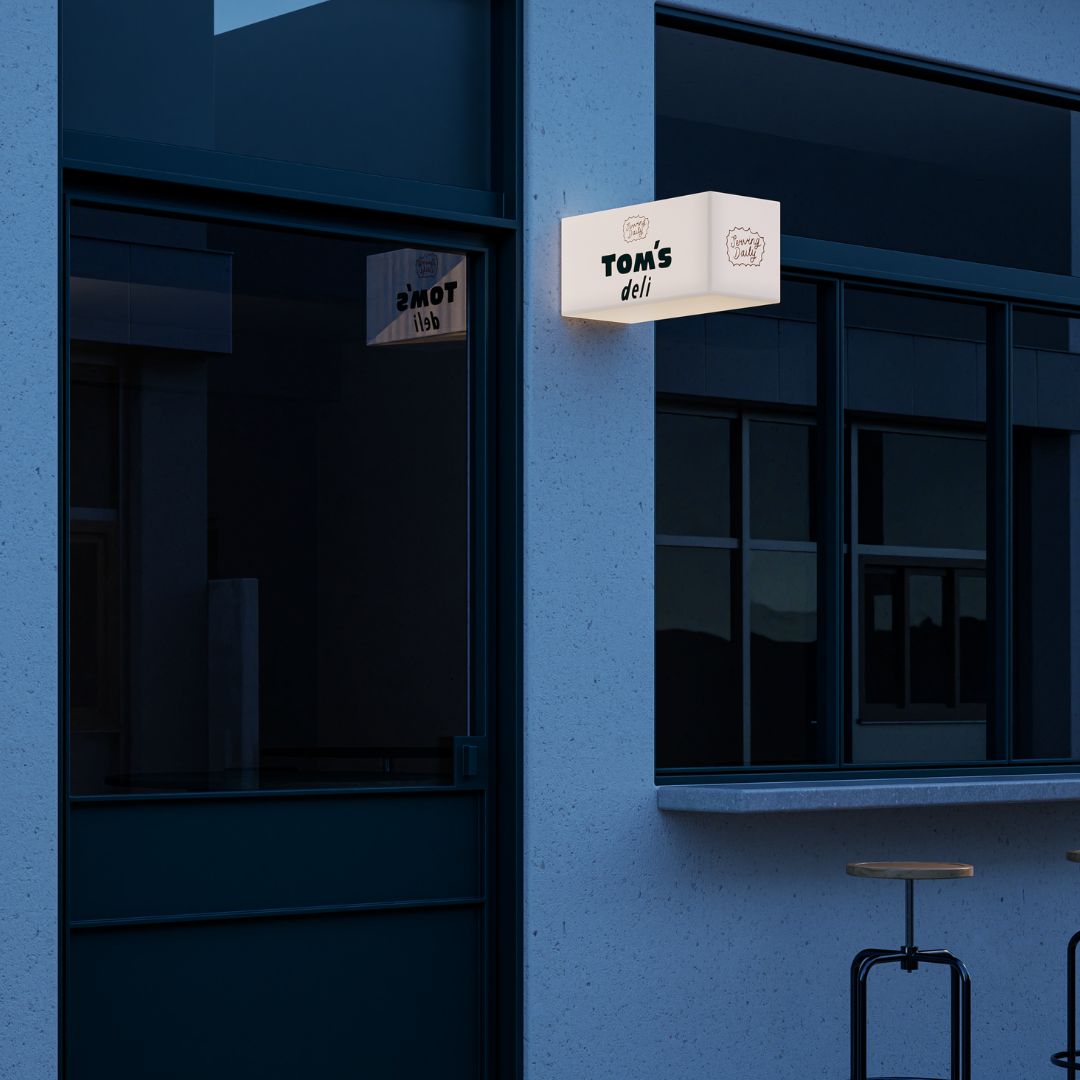

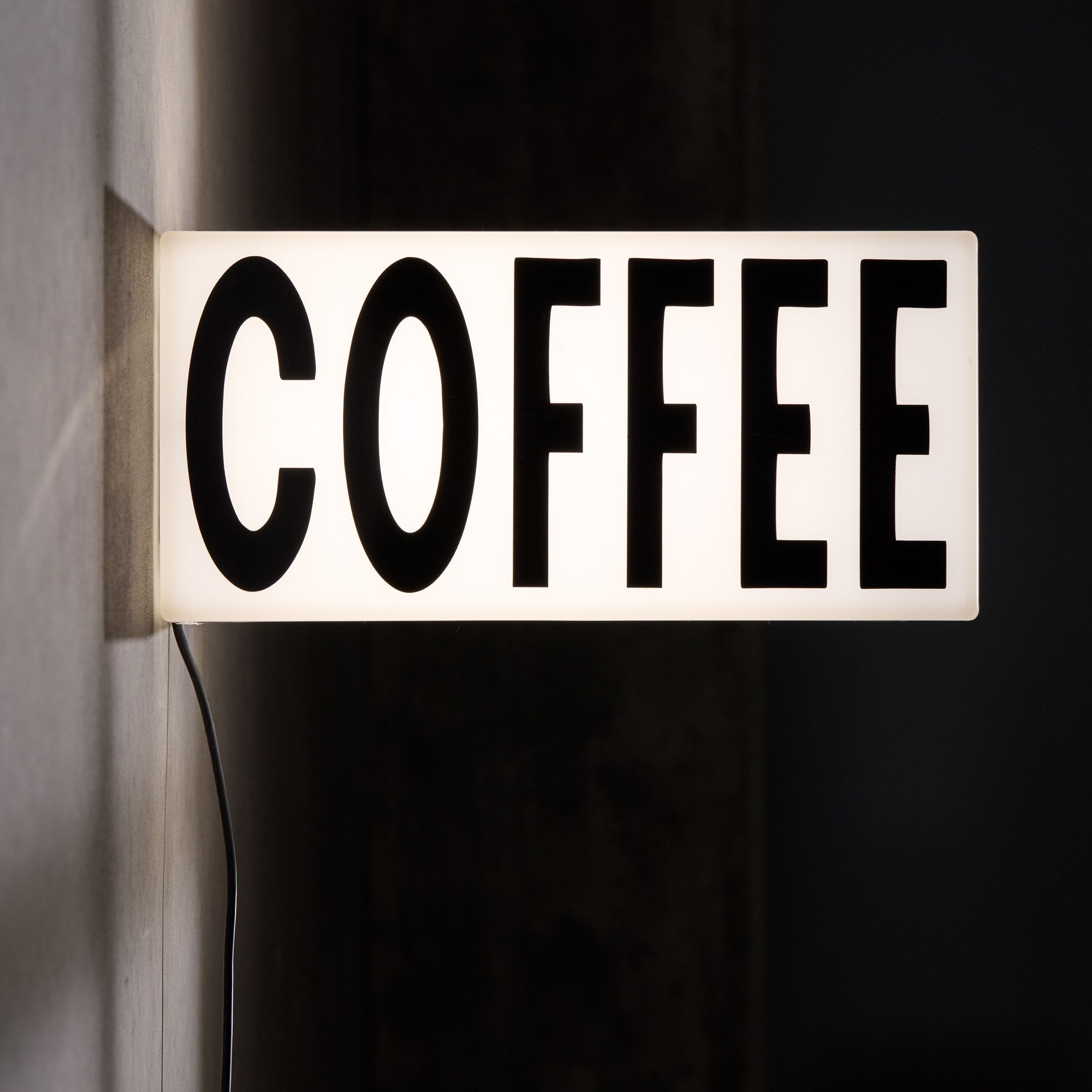

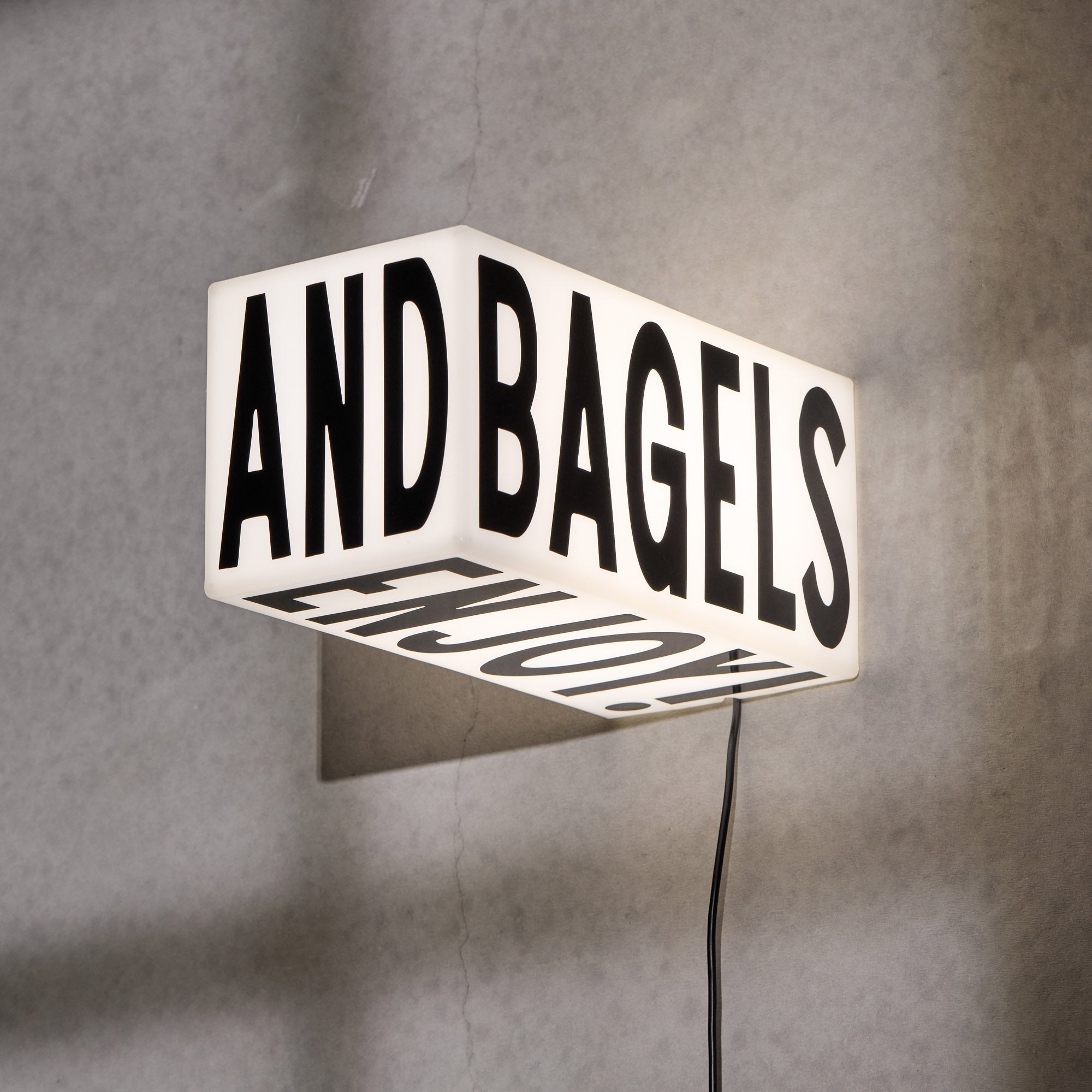

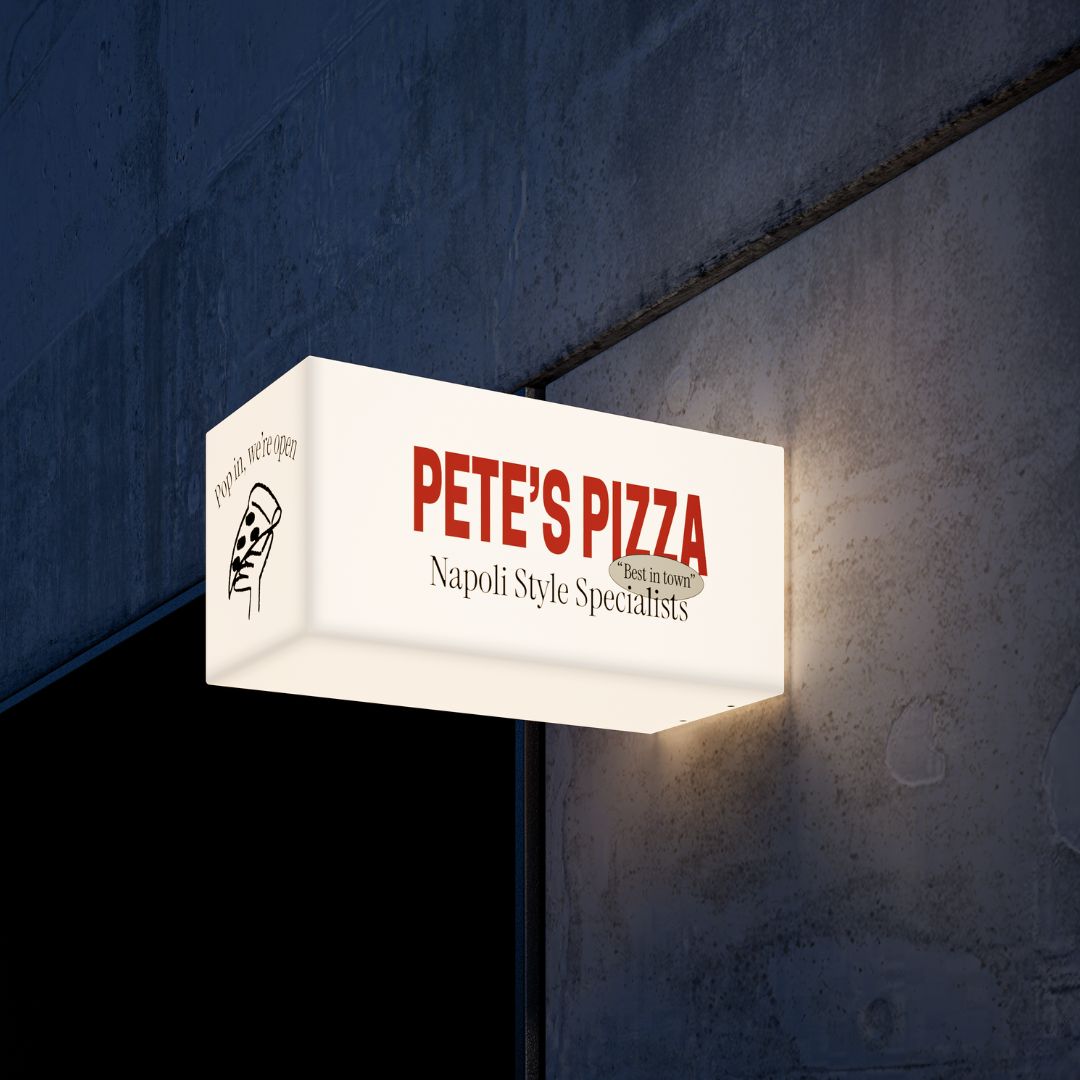

The Simple Light Box Sign is an illuminated projecting box sign, 8″ × 8″ (20 × 20 cm) and extending 16.5″ (42 cm) from the wall. Made from aluminum with PE plastic panels and seamless corners, it runs on 12 V with a 4000–4500K LED output and an integrated dimmer. Five faces are brandable — both sides, the front, the underside and the top.

What else is it called?

The Simple Light Box Sign is a type of illuminated projecting sign, also known as a light-up blade sign, LED box sign, illuminated shop sign, or storefront sign. Because it projects from the wall and lights up, it's visible from along the street after dark.

How many sides can be branded?

Five: both sides, the front face, the underside and the top. The underside catches people walking directly beneath it, and the top is visible from upper floors and balconies. You'll need a decal for each face you want branded — worth planning with your signwriter, since five is more than a flat sign requires.

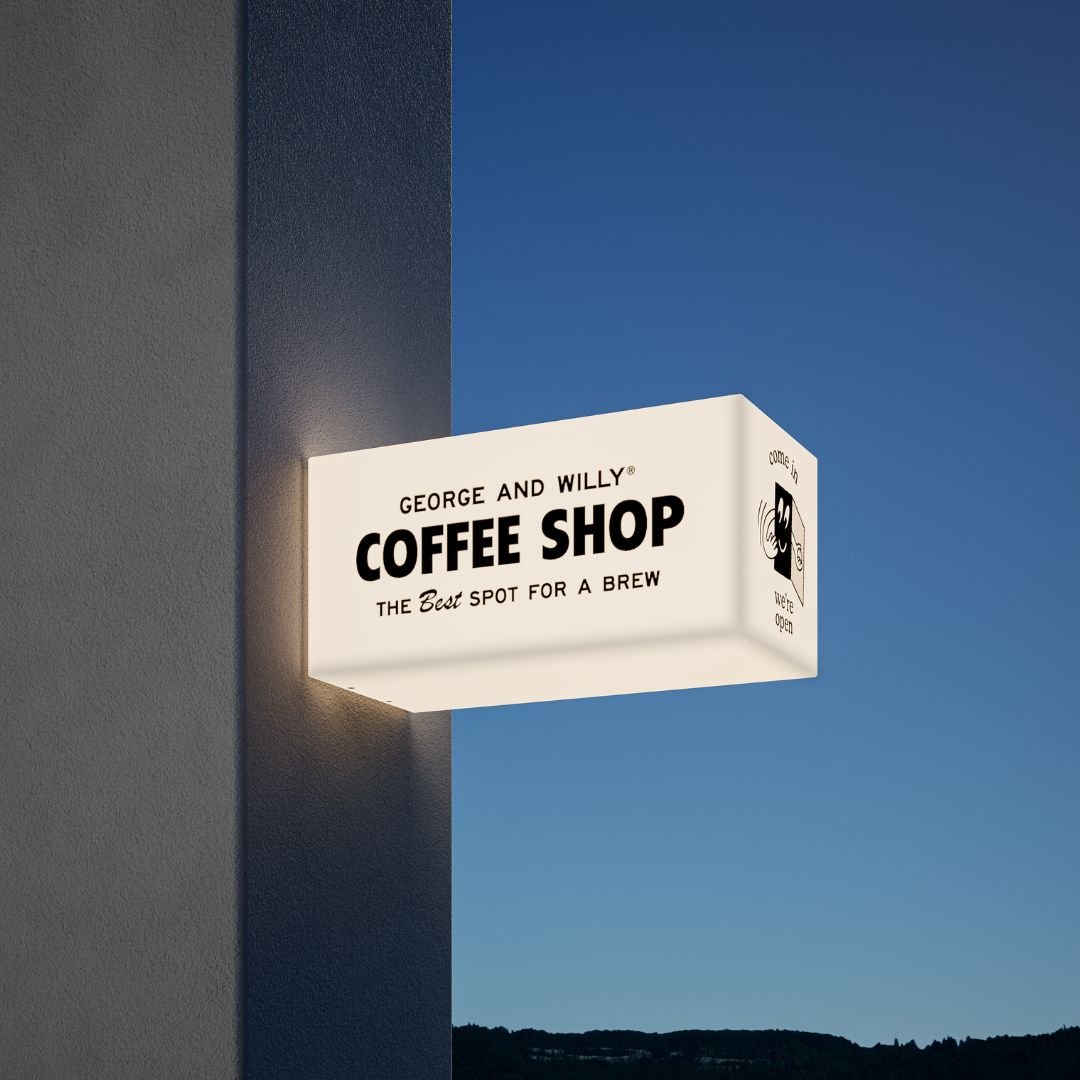

How far does it project from the wall?

16.5″ (42 cm) in total, wall to outer face.

How is the Simple Light Box Sign powered?

The sign runs on 12 V and includes a 6 m cable, an integrated dimmer, and plugs for AU/NZ, US and EU outlets. It can be plugged in or hardwired by a qualified electrician.

The sign itself is weatherproof, but the plug, dimmer and cable connection must be indoors — so an outdoor installation needs the cable run through the wall to an interior power point or switchboard. Measure the full cable path, not just the distance along the wall, when checking the 6 m will reach.

Do I need an electrician to install it?

For a plug-in installation you don't necessarily need one, but any outdoor install involves running the cable through the wall to an indoor connection, so most customers use an electrician. If you're hardwiring, an electrician is required.

How bright is the Simple Light Box Sign?

The LEDs run at 4000–4500K, a neutral white that reads clearly at night without a blue cast. The integrated dimmer lets you adjust brightness to suit your frontage.

Can the Simple Light Box Sign be used outdoors?

Yes — the housing is weatherproof and built for exterior use, with aluminum that won't rust in coastal conditions. The seamless corners have no glued joins for water to get into. The electrical components are not weatherproof and need to be indoors.

What is the Simple Light Box Sign made from?

An aluminum housing with PE plastic panels. The corners are formed rather than glued or joined, so there are no seams — which is both how it looks clean and how it keeps water out.

Does the Simple Light Box Sign come with mounting hardware?

Yes. Stainless-steel wood screws are supplied, designed to fix into solid timber framing. For brick, concrete, block or render, you'll need to source the appropriate masonry anchors yourself.

Do I need council approval to install a projecting sign?

Possibly. Because the Simple Light Box Sign extends 16.5″ (42 cm) from the wall, it sits over public footpath in most installations, and many councils require consent for projecting signage — with rules on projection, clearance height and sometimes brightness or operating hours for illuminated signs. Requirements vary by country and council, so check locally before installing.

Is the Simple Light Box Sign suitable for windy locations?

Once fixed into a solid substrate, the Simple Light Box Sign is built for normal exterior conditions. As with any projecting sign, exposed or high-wind sites put more load on the fixings, so we'd recommend a professional installer assess your wall.

Does the Simple Light Box Sign arrive branded?

No — it's supplied as a blank. A local signwriter can apply a vinyl decal to each face. If you need more information, check out our blog post on the sign writing process.

What is the warranty period for the Simple Light Box Sign?

The Simple Light Box Sign comes with a two-year warranty covering both hardware and electronics. Full details are on our FAQs page.

Can the light box blade sign be used outdoors?

Absolutely! The LED sign is 100% weatherproof and designed to be used in exterior spaces.

What height do you recommend for mounting the rectangular light box sign?

We recommend mounting the outdoor wall sign above 6.8'/2.1m high. This gets the store sign out of the way for people, whilst still being at a good height for visibility. However, the mounting height for the Simple Light Box Sign really depends on each location.

What other names do people use to describe the Simple Light Box Sign?

The LED Sign can also be called a square outdoor LED light box sign, light-up blade sign, outdoor business sign, shop sign, storefront sign, and illuminated Sign.

Does the Simple Light Box Sign work in high-wind locations?

Yes, the rectangle light box sign is great in windy locations due to the solid base for fixing the sign onto the wall.

Do you make the Simple Light Box Sign in a different shape?

Yes, we do! In our light box range, we currently have our Rectangle Light Box Sign, Curve Light Box Sign, and Round Light Box Sign.
